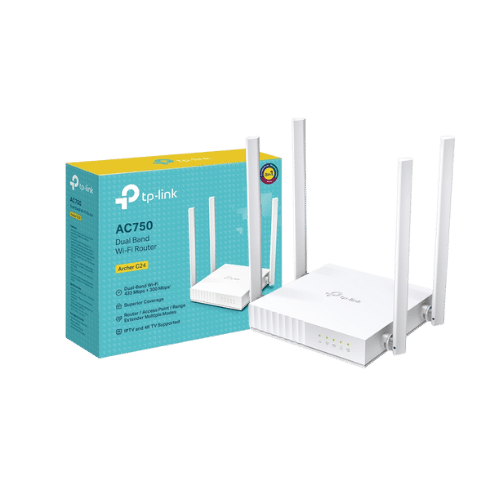

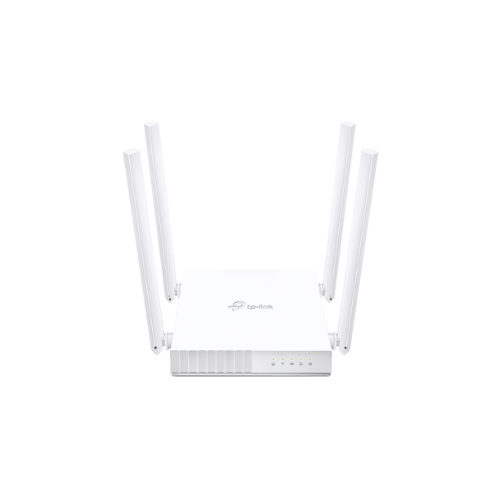

Tp-link Archer C24 AC750 Dual Band Wi-fi Router
Tp-link Archer C24 AC750 Dual Band Wi-fi Router
- High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
- Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
SPECIFICATIONS
|
Network Security |
- SPI Firewall |
|
- Access Control |
|
|
- IP & MAC Binding |
|
|
- Application Layer Gateway |
|
|
Guest Network |
- 1× 5 GHz Guest Network |
|
- 1× 2.4 GHz Guest Network |
|
|
WiFi Encryption |
- WEP |
|
- WPA |
|
|
- WPA2 |
|
|
- WPA/WPA2-Enterprise (802.1x) |
|
|
WIRELESS |
- Standards: Wi-Fi 5 |
|
- WiFi Speeds: AC750 |
|
|
- 5 GHz: 433 Mbps (802.11ac) |
|
|
- 2.4 GHz: 300 Mbps (802.11n) |
|
|
WiFi Range |
- Suitable for 2 Bedroom Houses |
|
- 4× Fixed Antennas |
|
|
- Signal-boosting array covering multiple directions |
|
|
- WiFi Capacity: Medium |
|
|
- Dual-Band: Optimizes device allocation |
|
|
Working Modes |
- Router Mode |
|
- Access Point Mode |
|
|
- Range Extender Mode |
|
|
HARDWARE |
- Processor: Single-Core CPU |
|

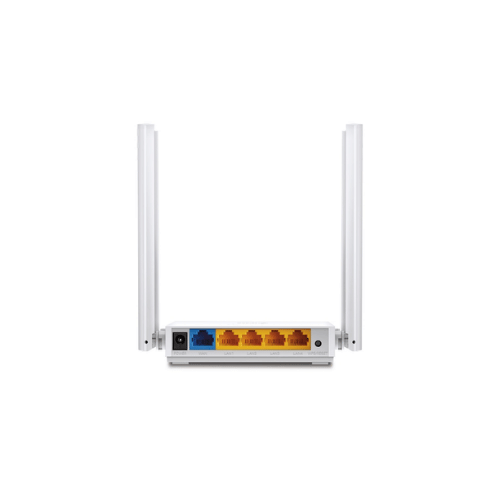

- Ethernet Ports: 1× 10/100 Mbps WAN Port |
|
|
4× 10/100 Mbps LAN Ports |
|
|
- Buttons: WPS/Reset Button |
|
|
- Power: 9 V ⎓ 0.6 A |
|
|
SOFTWARE |
- Protocols: IPv4, IPv6 |
|
- Parental Controls: URL Filtering, Time Controls |
|
|
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, |
|
|
L2TP |
|
|
- Quality of Service (QoS) by Device |
|
|
- NAT Forwarding, Port Forwarding, Port Triggering, |
|
|
DMZ, UPnP |
|
|
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN, |
|
|
DHCP, Address Reservation, DHCP Client List, DDNS |
|
|
- Management: Tether App, Webpage |
|
|
OTHER |
- System Requirements: Compatible browsers (e.g., |
|
Internet Explorer, Firefox, Chrome, Safari), |
|
|
Cable or DSL Modem (if needed), Subscription |
|
|
with an internet service provider (for internet |
|
|
access) |
|
|
- Certifications: FCC, CE, RoHS |
|
|
- Environment: Operating Temperature: 0℃~40℃ (32℉ |
|
|
60℃ (-40℉ ~140℉) |
|
|
Operating Humidity: 10%~90% non-condensing, |
|
|
Storage Humidity: 5%~90% non-condensing |
|
|
TEST DATA |
- WiFi Transmission Power: CE: <20dBm(2.4GHz), |
|
<23dBm(5GHz) |
|
|
- WiFi Reception Sensitivity: 5GHz and 2.4GHz |
|
|
PHYSICAL |
- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × |
|
106.7 × 24.3 mm) |
|
|
Package Contents |
- Wi-Fi Router Archer C24 |
|
- Power Adapter |
|
|
- RJ45 Ethernet Cable |
|
|
- Quick Installation Guide |
