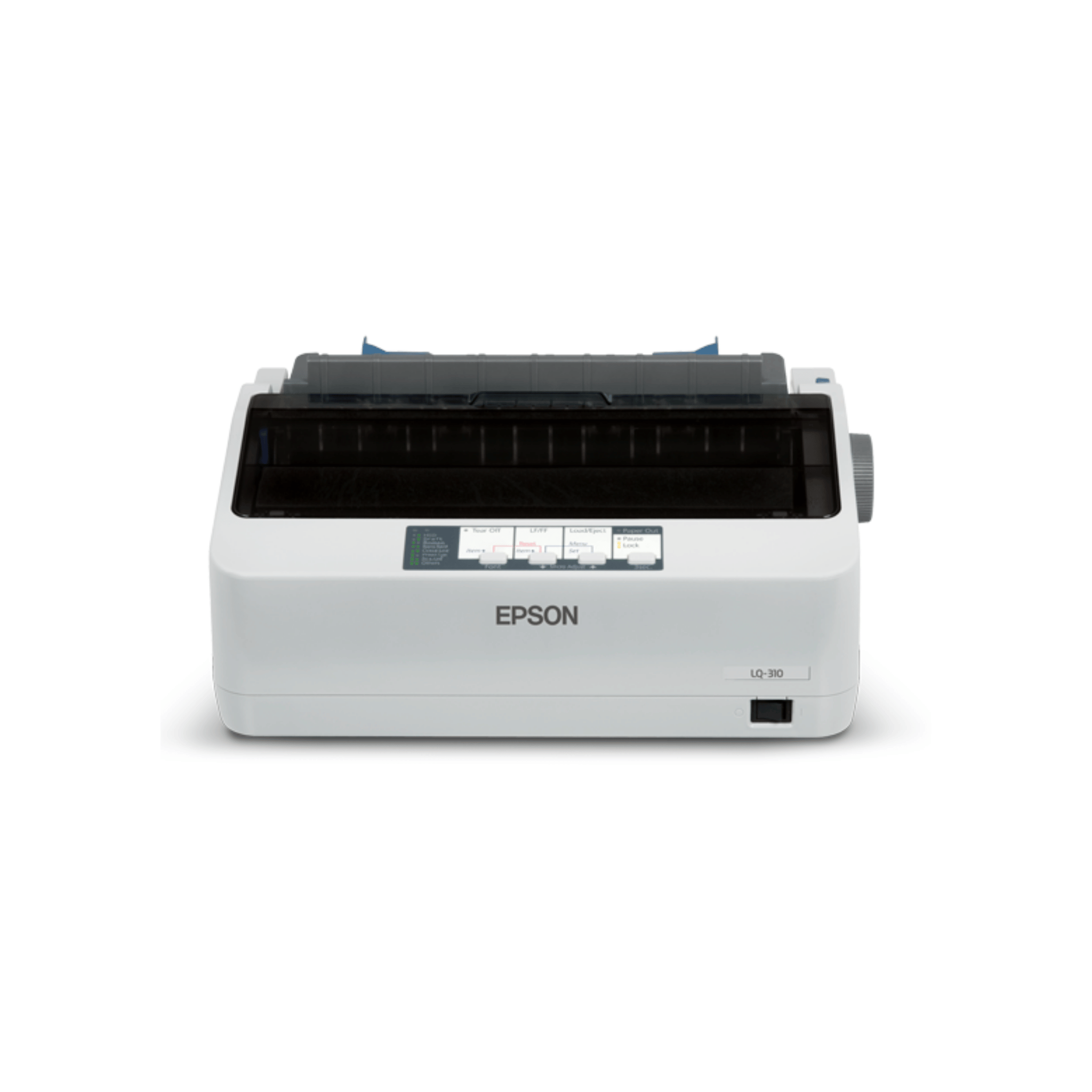

Epson LQ-310 24-pin Dot Matrix Printer

Name: Epson LQ-310 24-pin Dot Matrix Printer
Brand: My Store
Price: 14995.0 PHP
Availability: InStock
Rating: 5.0 (10 reviews)

₱14,995.00

Description
Delivery & Shipping
Warranty
FAQs

24-Pin Narrow Carriage Impact Printer

Your fast and affordable printing solution

SPECIFICATIONS

Printing Technology:

Print Method:Impact dot matrix

Control Panel:4 switches and 5 LEDs

Print Direction:Bi-direction with logic seeking

Number of Pins in Head:24 pins

Control Code:ESC/P2 and IBM PPDS emulation

Print Speed:

High Speed Draft:10cpi: 347 cps
12cpi: 416 cps

Draft:10cpi: 260 cps
12cpi: 312 cps
15cpi: 390 cps
(Condensed) 17cpi: 222 cps
(Condensed) 20cpi: 260 cps

Letter Quality:10cpi: 86 cps
12cpi: 103 cps
15cpi: 129 cps
(Condensed) 17cpi: 147 cps
(Condensed) 20cpi: 172 cps

Reliability:

MTBF:Approx. 10,000 POH (25% Duty)

Printhead Life:Approx. 400 million strokes/wire

Mean Print Volume Between Failure (MVBF):Approx. 20 million lines (Except print head)

Print Characteristics:

Character Sets:Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15

Bitmap Fonts:Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional

Scalable Fonts:Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)

Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet

Paper Path:

Manual Insertion:Rear in, Top out

Push Tractor:Rear in, Top out

Paper Media:

Cut Sheet (Single Sheet):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")

Cut Sheet (Multi-part Forms):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)

Envelope (No.6):Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)

Envelope (No.10):Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)

Continuous Paper (Single Sheet):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)

Continuous Paper (Multi-part Forms):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)

Roll Paper:Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")

General:

Memory Buffer:128KB

Supported OS and Applications:

Supported OS:Windows 95 / 98 / 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10

Utility:Epson Status Monitor 3: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10
Epson Printer Setting: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10

Dimensions and Weight:

Dimensions (W x D x H):362 x 275 x 154 mmWeight:4.1kg

Consumables:

Ribbon Cartridge Black:Approx. 2.5 million characters (LQ 10cpi, 48 dots/character) - C13S015639

Options:

Options:Fabric Ribbon Cartridge (Black) - S015634

Environmental Conditions (Operating):

Temperature:5 ~ 35°CHumidty:10 ~ 80 % RH

Acoustic Noise:

Acoustic Noise:Approx. 53 dB(A) (ISO 7779 pattern)

Interface:

Standard:Bi-directional parallel interface (IEEE-1284 nibble mode supported)
USB 2.0 Full-Speed
Serial
