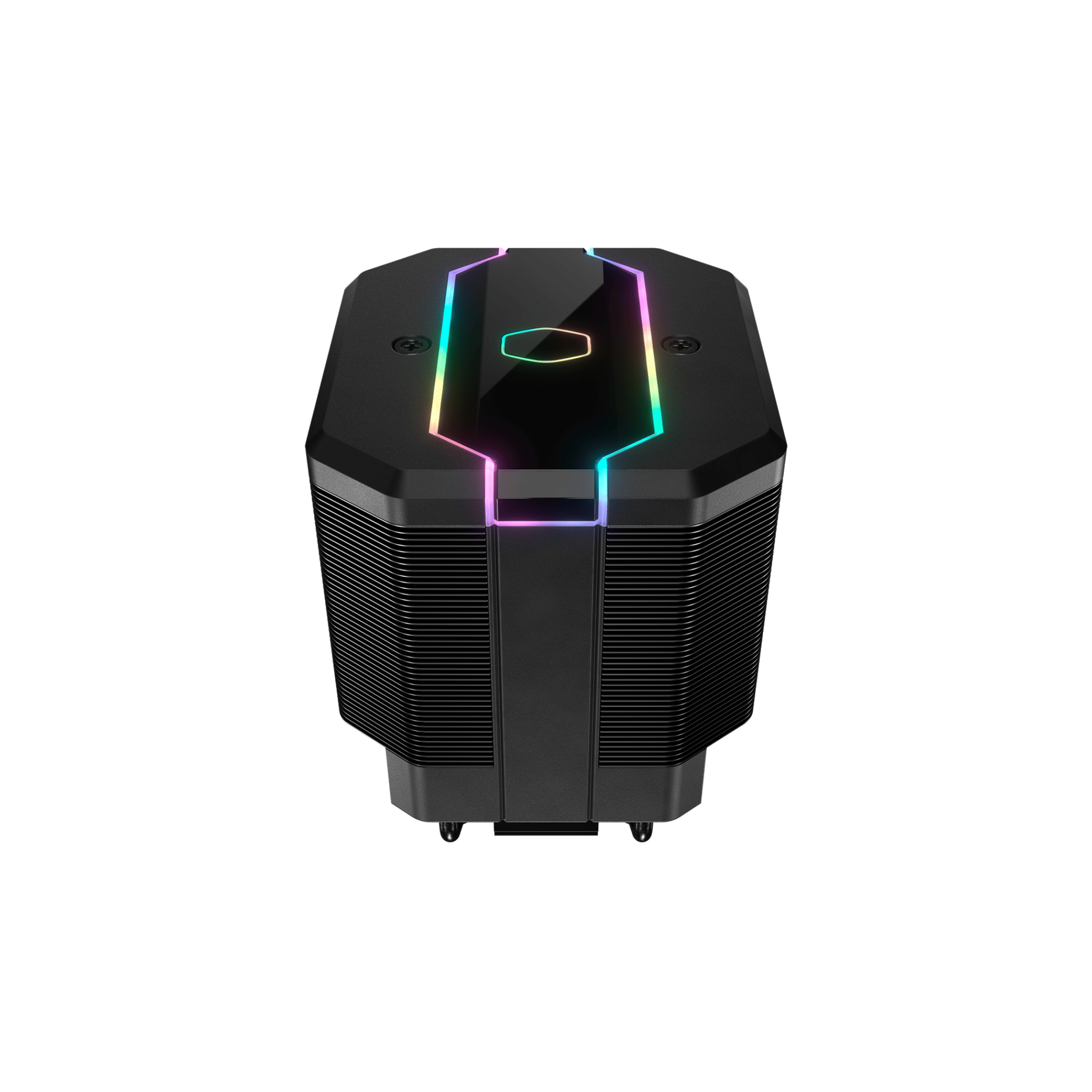

- Cooler Master MasterAir MA620M Dual Tower Heatsink w/ Addressable RGB Lighting Cooler Master MasterAir MA620M Dual Tower Heatsink w/ Addressable RGB Lighting






- Description
- Delivery & Shipping
- Warranty
- FAQs
About this item:

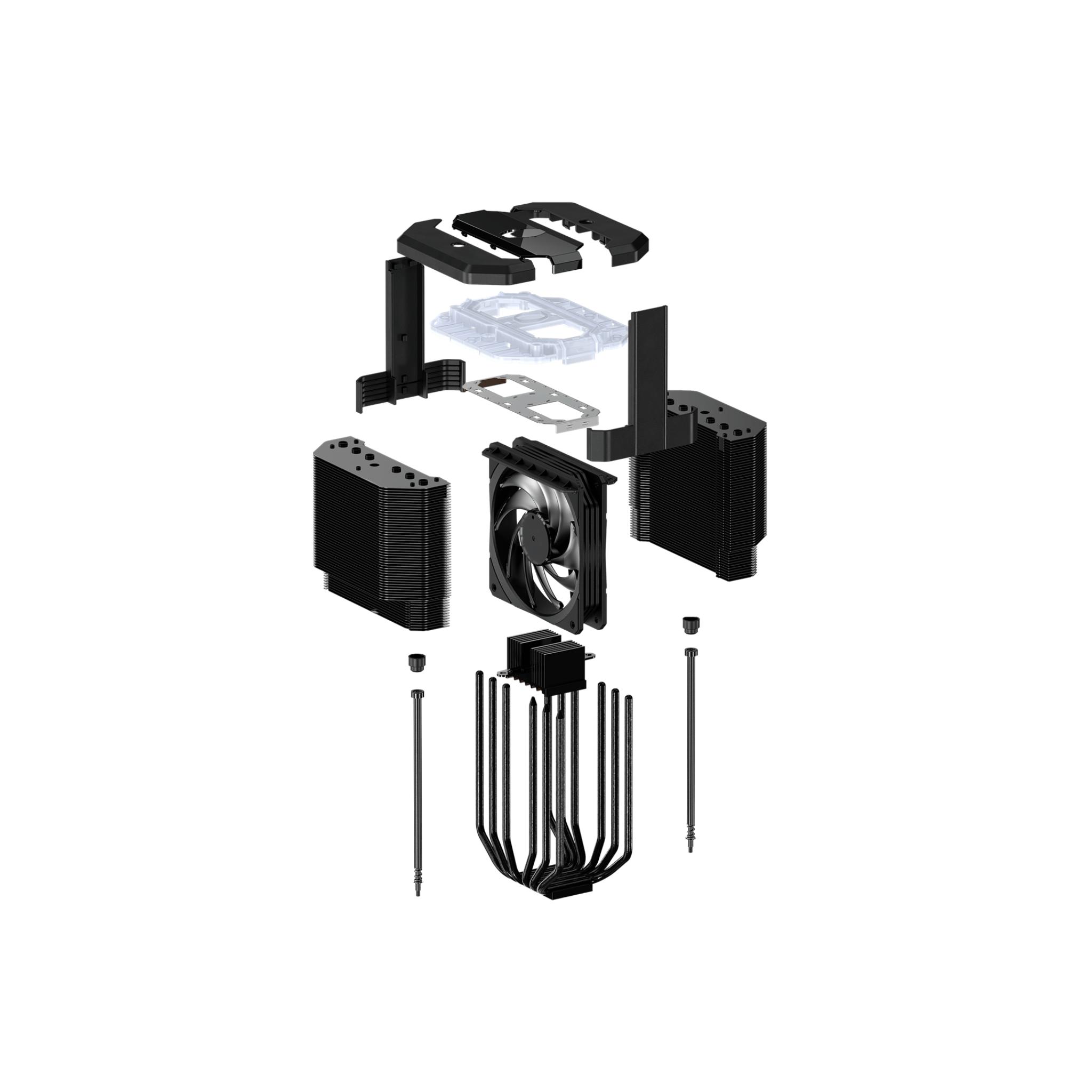

DUAL TOWER HEATSINK - A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance

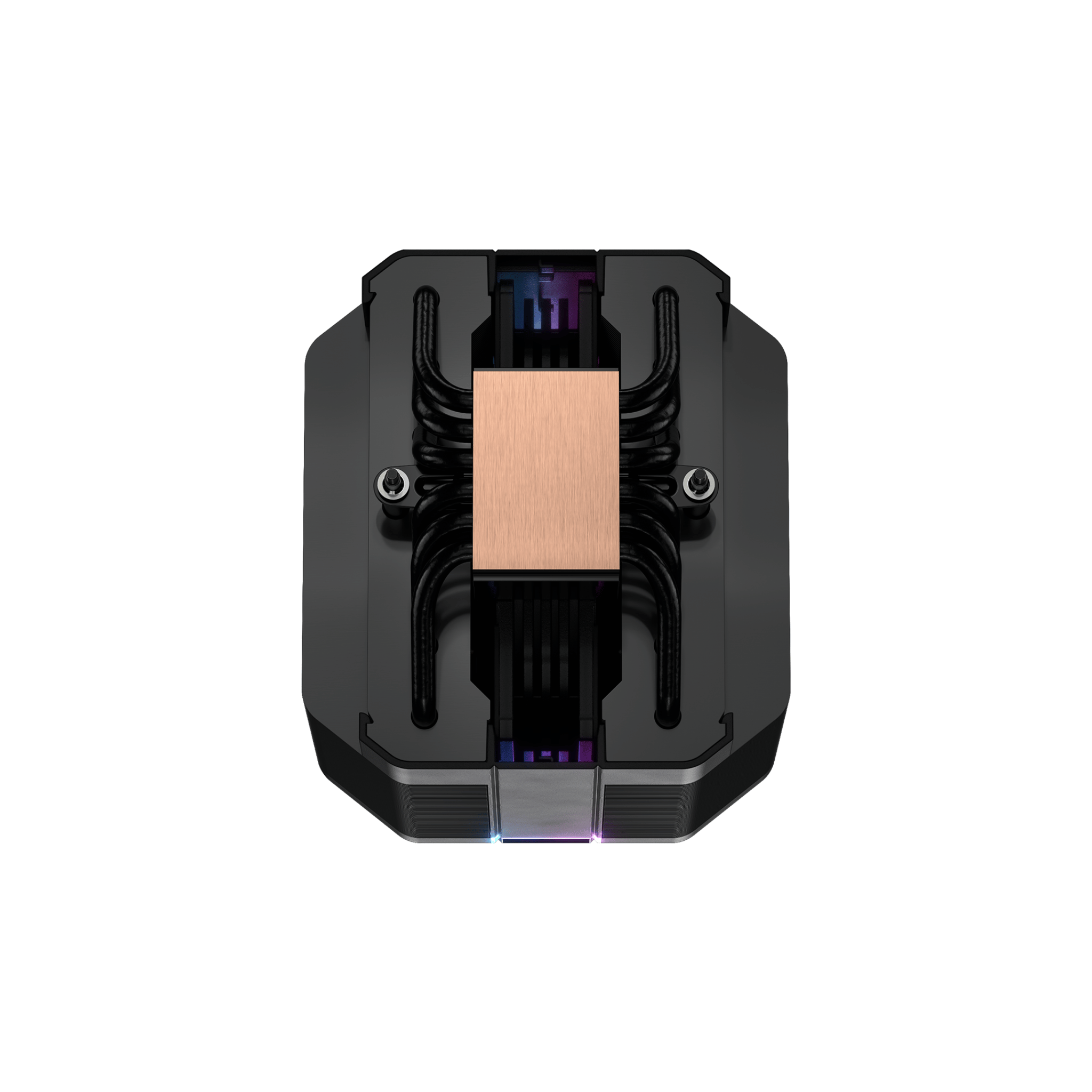

6 HEATPIPE ARRAY - Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks
EASY MOUNTING SYSTEM - Exclusive All-In-One mounting design for easy installation
THE NEW SF120R FAN - with silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance
ADDRESSABLE RGB LED CONTROLLER - The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software
LIGHTING BADGE - The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect
SPECIFICATIONS
Product Number: MAM-D6PN-120PA-R1
CPU Socket: LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Dimensions (L x W x H): 135 x 125 x 165 mm / 5.3 x 4.9 x 6.5 inch
Heat Sink Material: 6 Heat Pipes, Aluminum Fins
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity: 1 PC
Fan Speed: 650-2000 RPM (PWM) ± 10%
Fan Airflow: 57.3 CFM (Max)
Fan Air Pressure: 2.0 mmH2O (Max)
Fan MTTF: 160,000 Hours
Fan Noise Level: 8 - 30 dBA
Fan Power Connector: 4-Pin (PWM)
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.16A
Fan Safety Current: 0.37A
Fan Power Consumption: 1.92W
Series: MasterAir
Cooler Type: Air Cooler
Heatpipes: 6
Note: *Accessory Pack Required, Please Refer to Landing Page or Technical Support
