CPU:
Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors:
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list:
Chipset:
Intel® B365
Memory:
Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic:
Integrated Graphics: Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1
Storage:
Intel® B365 Chipset :
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Realtek® RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard
Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Intel® B365 Chipset :
Intel® B365 Chipset :
7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, , 4 x Type-A+1 x Type-C, 2 at mid-board)
Intel® B365 Chipset :
4 x USB 2.0/1.1 port(s) (4 at mid-board)
Special Features:
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

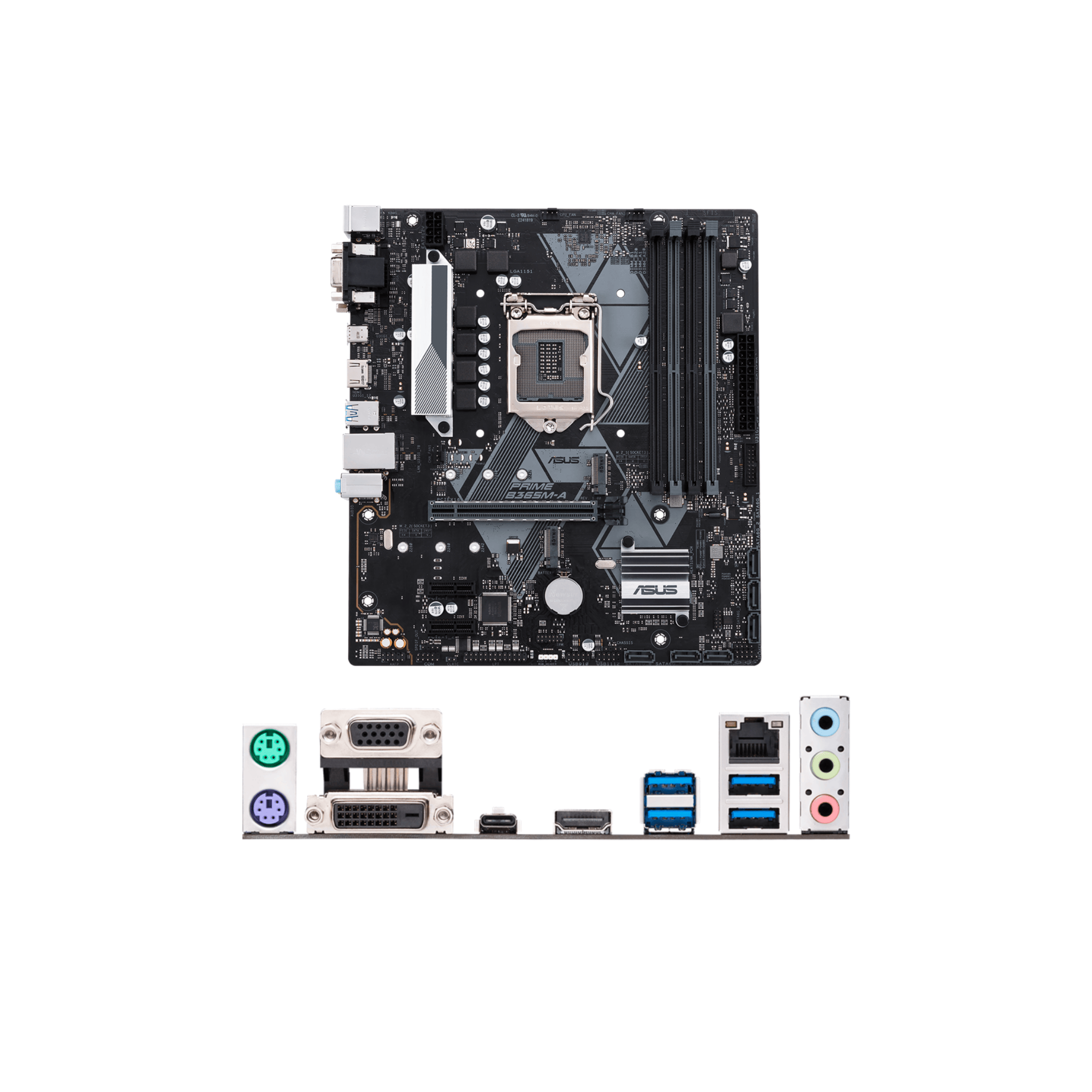

Back I/O Ports:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps
4 x USB 3.1 Gen 1 Type-A
1 x 8-channel Audio I/O
Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Chassis intrusion header
1 x Speaker connector
Accessories:
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
BIOS:
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information
Manageability:
WOL by PME, PXE
Operating System:
Windows® 10 64-bit
Form Factor:
mATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
Note
* When a device in SATA mode is installed on the M.2_1 socket, SATA6G_1 port cannot be used.
