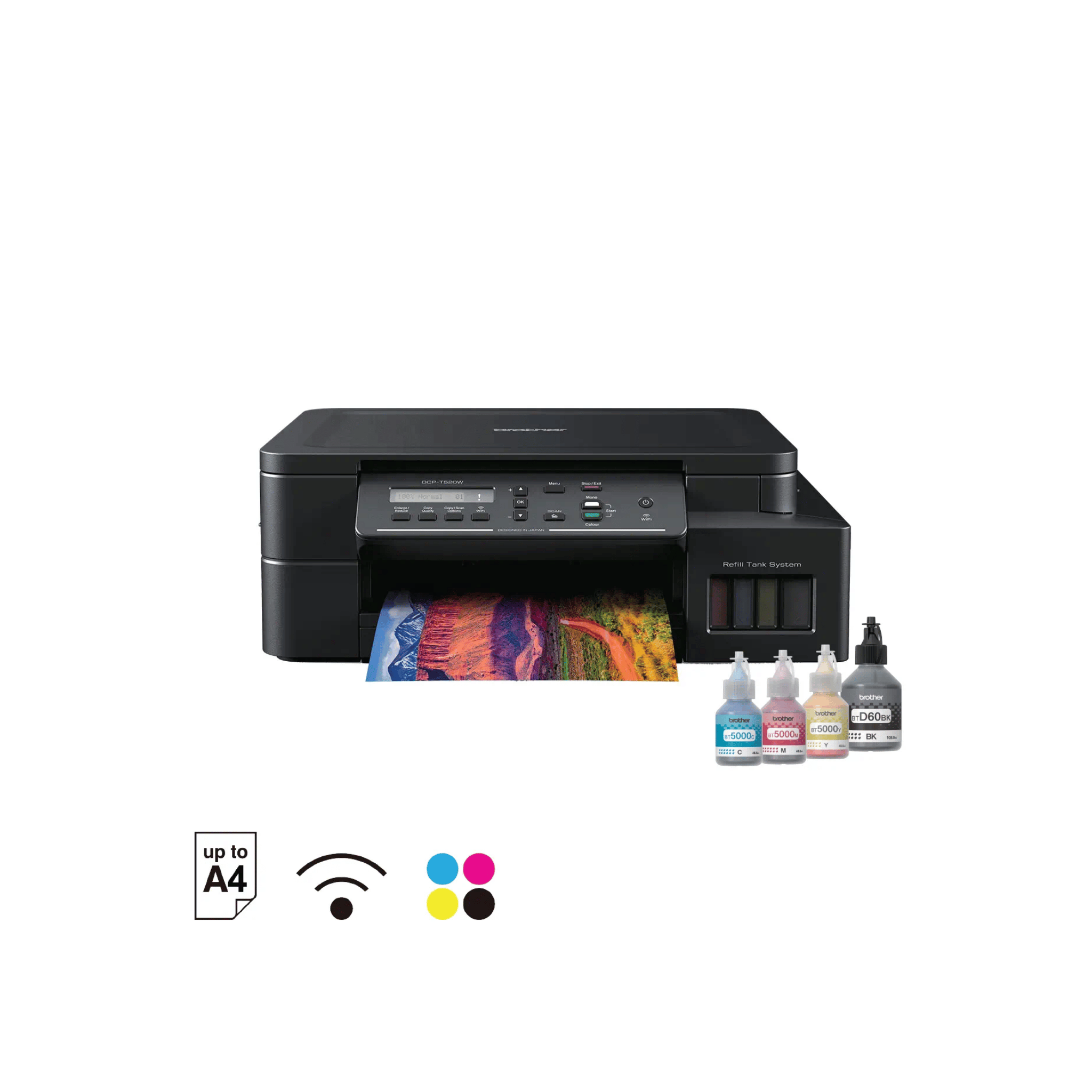

Brother DCP-T520W All-in-One Ink Tank Printer
3-in-1 multifunction printer with wireless and mobile printing to work-on-the go
- A4 print speed up to 17 ipm (Black)/ 9.5 ipm (Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, USB 2.0
- 1-line LCD
- Full ink bottles included. Yield up to 7500/5000 pages (black/colour)*
- Compatible with Mobile Connect app
- 1 year or 30,000 pages whichever comes first
With a document print speed of up to 17/9.5 ipm*, Brother printers speed up your workflows so you can do more in less time. From printing professional reports to outstanding brochures, you can confidently create powerful business materials that will make the best impression.
*Based on ISO/IEC 24734. For more information, please refer to www.brother.com/rd/printspeed
Handle Tasks Efficiently
Handle a variety of print jobs with a 150 sheets paper tray adjustable for different paper sizes and an additional single-sheet manual feed slot for various paper types.
Save More with Every Print
Lower your cost per print with Brother’s Ultra High Yield Ink bottles. Print up to 7,500** pages in black and 5,000** pages in colour! Our affordable genuine ink ensures long-lasting machines and print heads, so you save more in the long run.
**Quoted approx. yields are extrapolated based on Brother original methodology using Test Pattern ISO/IEC 24712. Quoted approx. yields are not based on ISO/IEC 24711.
Refill Easily & Accurately
Brother’s Refill Ink Tank printers features a transparent cover that allows for easy front access to the embedded ink tank. The user-friendly design is engineered to minimise the risk of mess and leakage.
Print from Anywhere
With flexible connectivity options, our printers are designed to suit all work environments. Built-in Wi-Fi allows your entire workgroup to effortlessly share one device. Plus, Brother printers are equipped with direct mobile print for the convenience of printing wirelessly from your mobile devices.
Easy to use
Brother Ink Tank Printers are plug and play. You can use them straight out of the box without any driver installation. The simple user interface also makes the printers a breeze to use.
SPECIFICATIONS
General Specifications
|
Printer Type
|
Inkjet |
||
|
Print Head
|
Mono
|
Piezo with 210 nozzles x 1 |
|
|
Colour
|
|
||
|
Memory Capacity
|
128 MB |
||
|
Liquid Crystal Display (LCD)
|
|
||
|
Power Source
|
AC 100 to 120 V 50/60 Hz (Taiwan) AC 220 to 240 V 50/60 Hz (Other countries) |
||
|
Power Consumption *2 |
|
||
|
Dimensions
|
|
||
|
Weights
|
|
||
|
Noise Level
|
Sound Pressure
|
Operating
|
53.5 dB (A) (Approx.) *7 |
|
Temperature
|
Operating
|
10 to 35°C |
|
|
Best Print Quality
|
20 to 33°C |
||
|
Humidity
|
Operating
|
20 to 80% (without condensation) |
|
|
Best Print Quality
|
20 to 80% (without condensation) |
||
|
Automatic Document Feeder (ADF)
(DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
Up to 20 pages Paper: 80 gsm |
||
Document Size Specifications
|
Document Size
|
ADF Width
(DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
148 to 215.9 mm |
|
148 to 355.6 mm |
||
|
Scanner Glass Width
|
Max. 215.9 mm |
|
|
Scanner Glass Length
|
Max. 297 mm |
Print Media Specifications
|
Paper Input
|
Paper Tray
|
Paper Type *1
|
Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper |
|
Paper Size *2 |
A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, B5 (JIS), A5, B6 (JIS), A6, Envelopes (C5, Com-10, DL, Monarch), Photo (4" x 6")/(10 x 15 cm), Photo 2L (5" x 7")/(13 x 18 cm), Index card (5" x 8")/(13 x 20 cm) |
||
|
Maximum Paper Capacity
|
Up to 150 sheets of 80 gsm plain paper |
||
|
Multi-purpose tray (MP tray) *3 (DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
Paper Type *1
|
Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper |
|
|
A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, B5 (JIS), A5, B6 (JIS), A6, Envelopes (C5, Com-10, DL, Monarch), Photo (4" x 6")/(10 x 15 cm), Photo L (3.5" x 5")/(9 x 13 cm), Photo 2L (5" x 7")/(13 x 18 cm), Index card (5" x 8")/(13 x 20 cm) |
|||
|
Maximum Paper Capacity *4
|
Up to 80 sheets of 80 gsm Plain Paper |
||
|
Manual Feed Slot (DCP-T520W/DCP-T525W/DCP-T720DW/DCP-T725DW) |
Paper Type *1
|
Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper |
|
|
Paper Size *2 |
A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, B5 (JIS), A5, B6 (JIS), A6, Envelopes (C5, Com-10, DL, Monarch), Photo (4" x 6")/(10 x 15 cm), Photo L (3.5" x 5")/(9 x 13 cm), Photo 2L (5" x 7")/(13 x 18 cm), Index card (5" x 8")/(13 x 20 cm) |
||
|
Maximum Paper Capacity
|
Up to 1 sheet |
||
|
Paper Output *1
|
Up to 50 sheets of 80 gsm Plain Paper (face up print delivery to the output paper tray) |
||
Fax Specifications
This feature is available for MFC models.
|
Compatibility
|
ITU-T Group 3 |
|
Modem Speed
|
Automatic Fallback: 14,400 bps |
|
Scanning Width
(Single-sided document) |
ADF: 208 mm (A4) Scanner Glass: 204 mm (A4) |
|
Printing Width
|
204 mm (A4) |
|
Resolution (Horizontal) |
203 dpi |
|
Resolution (Vertical) |
Standard: 98 dpi (Mono) |
|
Fine: 196 dpi (Mono) |
|
|
Superfine: 392 dpi (Mono) |
|
|
Photo: 196 dpi (Mono) |
|
|
Address Book
|
40 numbers (MFC-T920DW/MFC-T925DW) |
|
Groups
|
Up to 6 |
|
Broadcasting
|
90 (40 Address Book/50 Manual Dial) (MFC-T920DW/MFC-T925DW) |
|
Automatic Redial
|
3 times at 5 minute intervals |
|
Memory Transmission
|
Up to 170 pages (MFC-T920DW/MFC-T925DW) *1 |
|
Out of Paper Reception
|
Up to 170 pages (MFC-T920DW/MFC-T925DW) *1 |
Copy Specifications
|
Colour/Monochrome
|
Yes/Yes |
|
|
Copy Width
|
204 mm *1 |
|
|
Multiple Copies
|
Stacks/Sorts up to 99 pages |
|
|
Enlarge/Reduce
|
25% to 400% (in increments of 1%) |
|
|
Resolution
|
Prints up to 1200 × 1800 dpi (DCP-T520W/DCP-T525W) Prints up to 1200 × 2400 dpi (DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
|
PhotoCapture Center Specifications
This function is available for MFC-T920DW/MFC-T925DW.
|
Compatible Media *1
|
USB Flash drive *2 |
|
|
|
Resolution
|
Up to 1200 x 6000 dpi (MFC-T920DW/MFC-T925DW) |
|
Paper Type
|
Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Brother BP71 paper |
|
|
Paper Size
|
A4, Letter, Photo (10 x 15 cm), Photo 2L (13 x 18 cm) |
|
|
File Format
|
JPEG (Progressive JPEG format is not supported) |
|
|
Scan to Media
|
File Format
|
JPEG, PDF (Colour, Grey) TIFF, PDF (Monochrome) |
Scanner Specifications
|
Colour/Monochrome
|
Yes/Yes |
|
TWAIN Compliant
|
Yes (Windows 7 SP1 / Windows 8.1 / Windows 10 / Windows 11) |
|
WIA Compliant
|
Yes (Windows 7 SP1 / Windows 8.1 / Windows 10 / Windows 11) |
|
Colour Depth
|
30 bit colour processing (Input) 24 bit colour processing (Output) |
|
Greyscale
|
10 bit colour processing (Input) 8 bit colour processing (Output) |
|
Resolution
|
|
|
Scanning Width and Length
(Single-sided document) |
(Scanner Glass) Width: Up to 213.9 mm Length: Up to 295 mm (ADF) *3 Width: Up to 213.9 mm Length: Up to 353.6 mm |
Printer Specifications
|
Resolution
|
Up to 1200 × 6000 dpi (Windows only) (DCP-T520W/DCP-T525W) Up to 1200 × 6000 dpi (DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
|
|
Printing Width *1
|
204 mm Borderless *2: 210 mm |
|
|
Borderless
|
A4, Letter, A6, Photo (10 x 15 cm), Photo L (9 x 13 cm), Photo 2L (13 x 18 cm), Index card (13 x 20 cm) |
|
|
Automatic 2-sided
(DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
Paper Type
|
Plain Paper, Recycled Paper |
|
Paper Size *3 |
A4, Letter, Executive, A5, B5 (JIS) |
|
|
Print Speed
|
See your model's page on your local Brother website. |
|
Interface Specifications
|
Use a USB 2.0 interface cable that is no longer than 2 m. |
|
|
LAN
(DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
Use an Ethernet UTP cable category 5 or greater. |
|
Wireless LAN
|
IEEE 802.11b/g/n (Infrastructure) IEEE 802.11g/n (Wi-Fi Direct) |
Network Specifications
-
(DCP-T520W/DCP-T525W/DCP-T720DW/DCP-T725DW/DCP-T820DW/DCP-T825DW)
You can connect your machine to a network for Network Printing and Network Scanning.
-
(MFC-T920DW/MFC-T925DW)
You can connect your machine to a network for Network Printing, Network Scanning, PC-Fax Send, PC-Fax Receive (Windows only).
|
Network Security (Wired)
(DCP-T820DW/DCP-T825DW/MFC-T920DW/MFC-T925DW) |
SSL/TLS (IPPS, HTTPS) |
| Network Security (Wireless) |
SSL/TLS (IPPS, HTTPS) |
| Wireless Network Security |
SSID (32 characters), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
| Wireless Setup Support Utility | WPS |
Yes |
