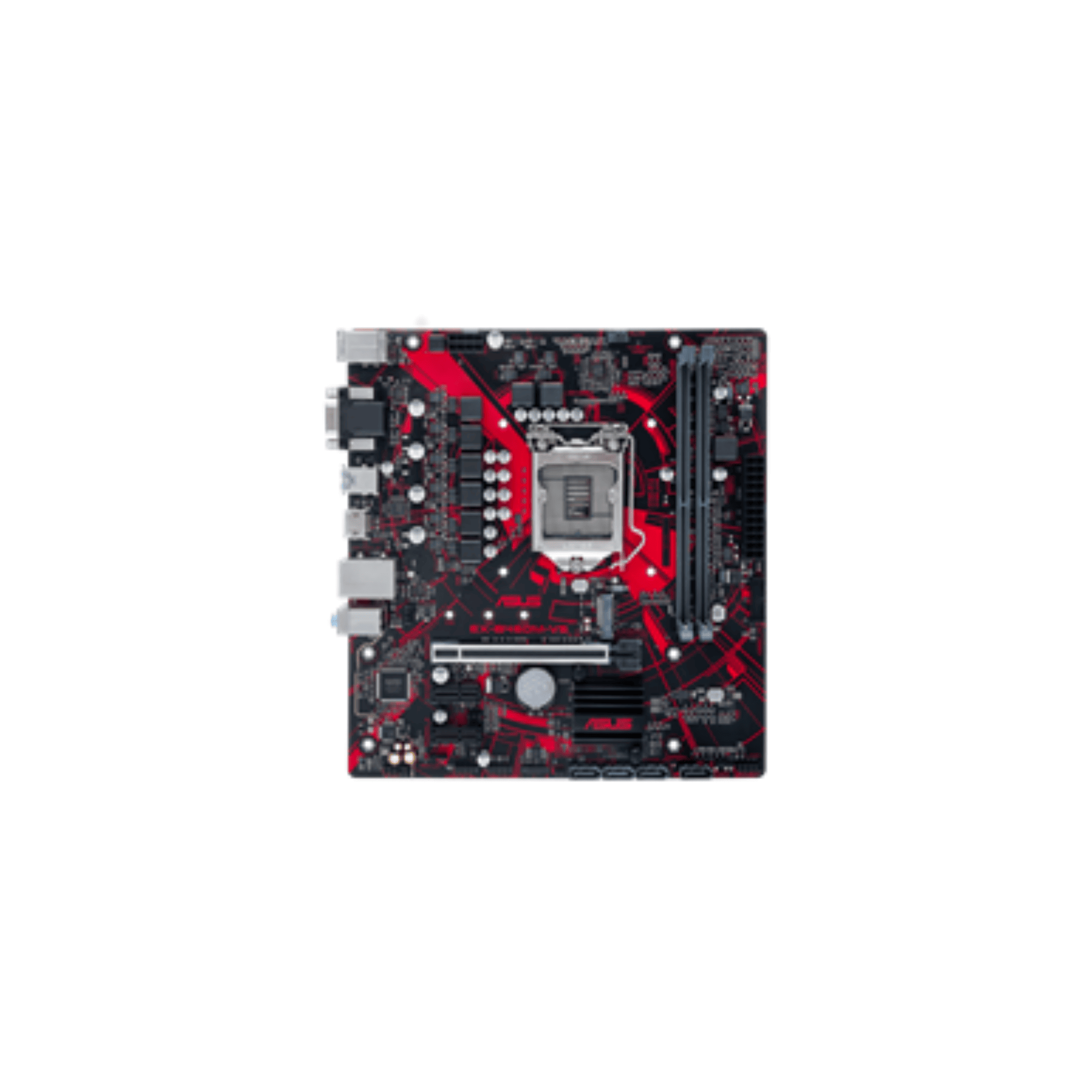

- Asus EX B460M V5 LGA1200 mATX Motherboard Asus EX B460M V5 LGA1200 mATX Motherboard


- Description
- Delivery & Shipping
- Warranty
- FAQs
CPU:
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 125 W
* Refer to www.asus.com for CPU support list:
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® B460
Memory:
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic:
Integrated Graphics Processor
Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots:
Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16
Intel® B460 Chipset
2 x PCIe 3.0 x1
LAN:
Realtek® RTL8111H
ASUS LANGuard
Audio:
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports:
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Special Features:
ASUS 5X Protection III :
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot Core+ - Prevent graphics card damage
- ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
Operating System Support:
Windows® 10 64-bit
Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
Accessories:
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows® 10 64-bit
Form Factor:
mATX Form Factor
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
