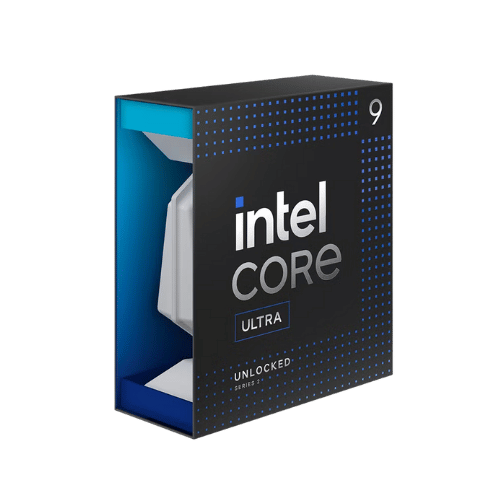

Intel Core Ultra 9 285K Processor INTEL-BX80768285K-99CN34
SPECIFICATION
|
Product Collection |
Intel® Core™ Ultra Processors (Series 2) |
|
Code Name |
Products formerly Arrow Lake |
|
Vertical Segment |
Desktop |
|
Processor Number |
285K |
|
Overall Peak TOPS (Int8) |
36 |
|
CPU Specifications |
|
|
Total Cores |
24 (8 Performance, 16 Efficient) |
|
Total Threads |
24 |
|
Max Turbo Frequency |
5.7 GHz |
|
Intel® Thermal Velocity Boost |
5.7 GHz |
|
Intel® Turbo Boost Max Technology 3.0 Frequency |
5.6 GHz |
|
Performance-core Max Turbo |
5.5 GHz |
|
Efficient-core Max Turbo |
4.6 GHz |
|
Performance-core Base Freq |
3.7 GHz |
|
Efficient-core Base Freq |
3.2 GHz |
|
Cache |
36 MB Intel® Smart Cache |
|
Total L2 Cache |
40 MB |
|
Processor Base Power |
125 W |
|
Maximum Turbo Power |
250 W |
|
Intel® Deep Learning Boost |
Yes |
|
AI Software Support (CPU) |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
|
CPU Lithography |
TSMC N3B |
|
Launch Details |
|
|
Marketing Status |
Launched |
|
Launch Date |
Q4'24 |
|
Embedded Options |
No |
|
Use Conditions |
PC/Client/Tablet, Workstation |
|
Memory Specifications |
|
|
Max Memory Size |
192 GB |
|
Memory Types |
Up to DDR5 6400 MT/s |
|
Max # of Memory Channels |
2 |
|
ECC Memory Support |
Yes |
|
GPU Specifications |
|
|
GPU Name |
Intel® Graphics |
|
Graphics Base Frequency |
300 MHz |
|
Graphics Max Dynamic Freq |
2 GHz |
|
GPU Peak TOPS (Int8) |
8 |
|
Graphics Output |
DP2.1 UHBR20, HDMI 2.1 FRL 12GHz, eDP1.4b |
|
Xe-cores |
4 |
|
Max Resolution (HDMI) |
4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI 2.1 FRL) |
|
Max Resolution (DP) |
8K @ 60Hz |
|
Max Resolution (eDP) |
4K @ 60Hz |
|
DirectX Support |
12 |
|
OpenGL Support |
4.5 |
|
OpenCL Support |
3 |
|
Intel® Quick Sync Video |
Yes |
|
# of Displays Supported |
4 |
|
Intel® Deep Learning Boost |
Yes |
|
NPU Specifications |
|
|
NPU Name |
Intel® AI Boost |
|
NPU Peak TOPS (Int8) |
13 |
|
Sparsity Support |
Yes |
|
Windows Studio Effects |
Yes |
|
AI Software Support (NPU) |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
|
Expansion Options |
|
|
DMI Revision |
4 |
|
Max # of DMI Lanes |
8 |
|
Intel® Thunderbolt™ 4 |
Yes |
|
Scalability |
1S Only |
|
PCI Express Revision |
5.0 and 4.0 |
|
PCI Express Configurations |
Up to 1x16+2x4, 2x8+2x4, 1x8+4x4 |
|
Max # of PCI Express Lanes |
24 |
|
Package Specifications |
|
|
Sockets Supported |
FCLGA1851 |
|
Thermal Solution |
PCG 2020A |
|
Max Operating Temperature |
105 °C |
|
Advanced Technologies |
|
|
Intel® VMD |
Yes |
|
Intel® GNA 3.5 |
Yes |
|
Intel® Thread Director |
Yes |
|
Intel® Speed Shift |
Yes |
|
Intel® Thermal Velocity Boost |
Yes |
|
Intel® Turbo Boost Max Technology 3.0 |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Instruction Set |
64-bit, Intel® SSE4.1, SSE4.2, AVX2 |
|
Security & Reliability |
|
|
Intel vPro® Eligibility |
Intel vPro® Enterprise, Intel vPro® Platform |
|
Intel® Threat Detection Tech |
Yes |
|
Intel® Active Management Tech |
Yes |
|
Intel® Standard Manageability |
Yes |
|
Intel® Remote Platform Erase |
Yes |
|
Intel® One-Click Recovery |
Yes |
|
Intel® Hardware Shield |
Yes |
|
Intel® Control-Flow Enforcement Tech |
Yes |
|
Intel® Total Memory Encryption |
Yes |
|
Intel® AES New Instructions |
Yes |
|
Secure Key |
Yes |
|
Trusted Execution Tech |
Yes |
|
Execute Disable Bit |
Yes |
|
OS Guard |
Yes |
|
Boot Guard |
Yes |
|
Mode-based Execute Control |
Yes |
|
Intel® SIPP |
Yes |
|
Intel® VT-rp |
Yes |
|
Intel® Virtualization (VT-x) |
Yes |
|
Intel® Virtualization (VT-d) |
Yes |
|
Intel® VT-x with EPT |
Yes |
