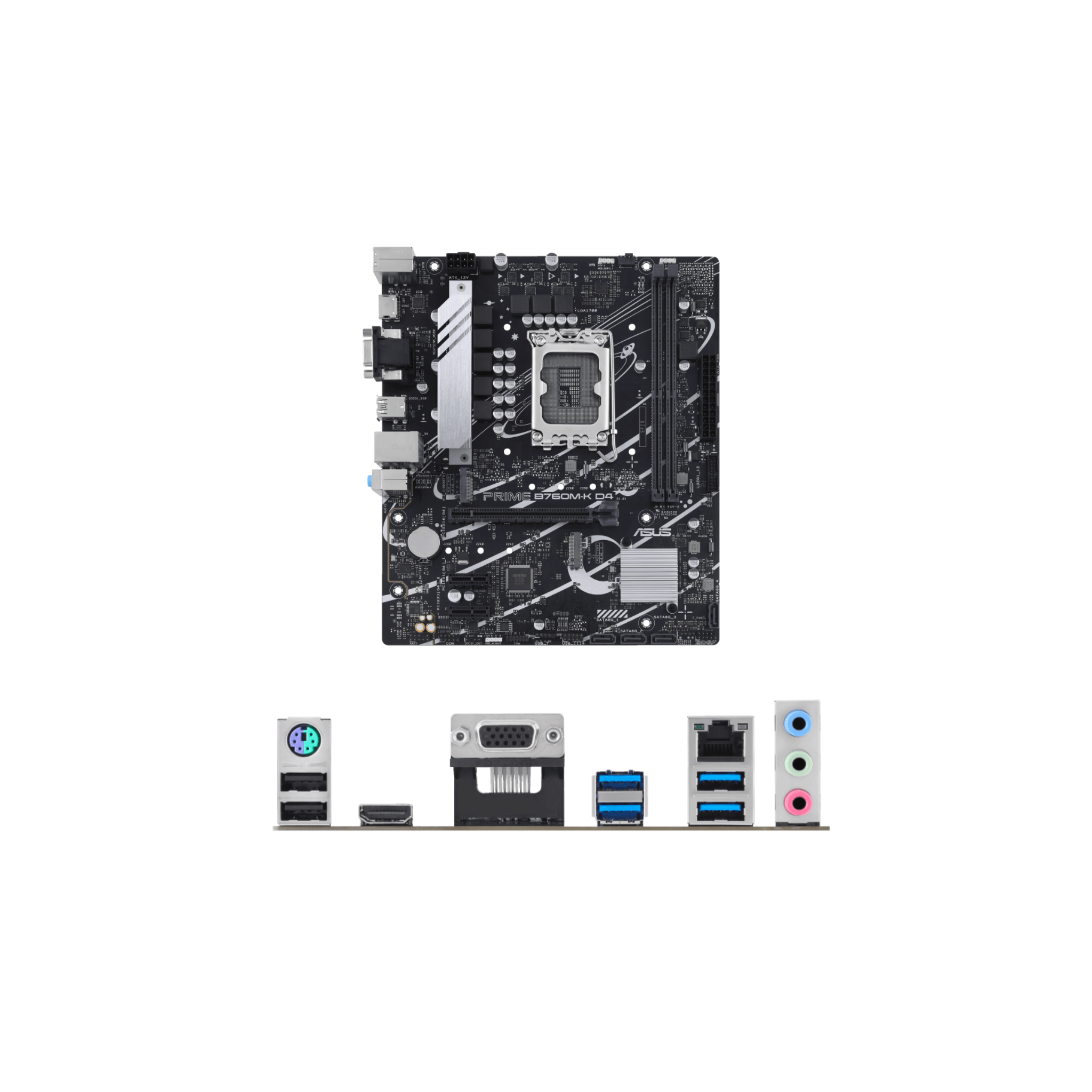

- Asus Prime B760M-K D4 LGA1700 mATX Motherboard Asus Prime B760M-K D4 LGA1700 mATX Motherboard




- Description
- Delivery & Shipping
- Warranty
- FAQs
CPU:
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Intel® B760 Chipset
Memory:
2 x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics:
1 x VGA port
1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots:
Intel® 13th & 12th Gen Processors:
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset:
2 x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet:
1 x Realtek 2.5Gb Ethernet
USB
Rear USB (Total 6 ports):
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports:
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related:
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports:
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous:
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III:
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design:
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY:
- ProCool
ASUS Thermal Solution:
- VRM heatsink design
Aura Sync:
- Aura RGB header
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate:
- Aura Sync
- Fan Xpert
- Power Saving
AI Suite 3:
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories:
Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x I/O Shield
2 x M.2 anchors
Documentation:
1 x User guide
Operating System:
Windows® 11, Windows® 10 64-bit
Form Factor:
mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
