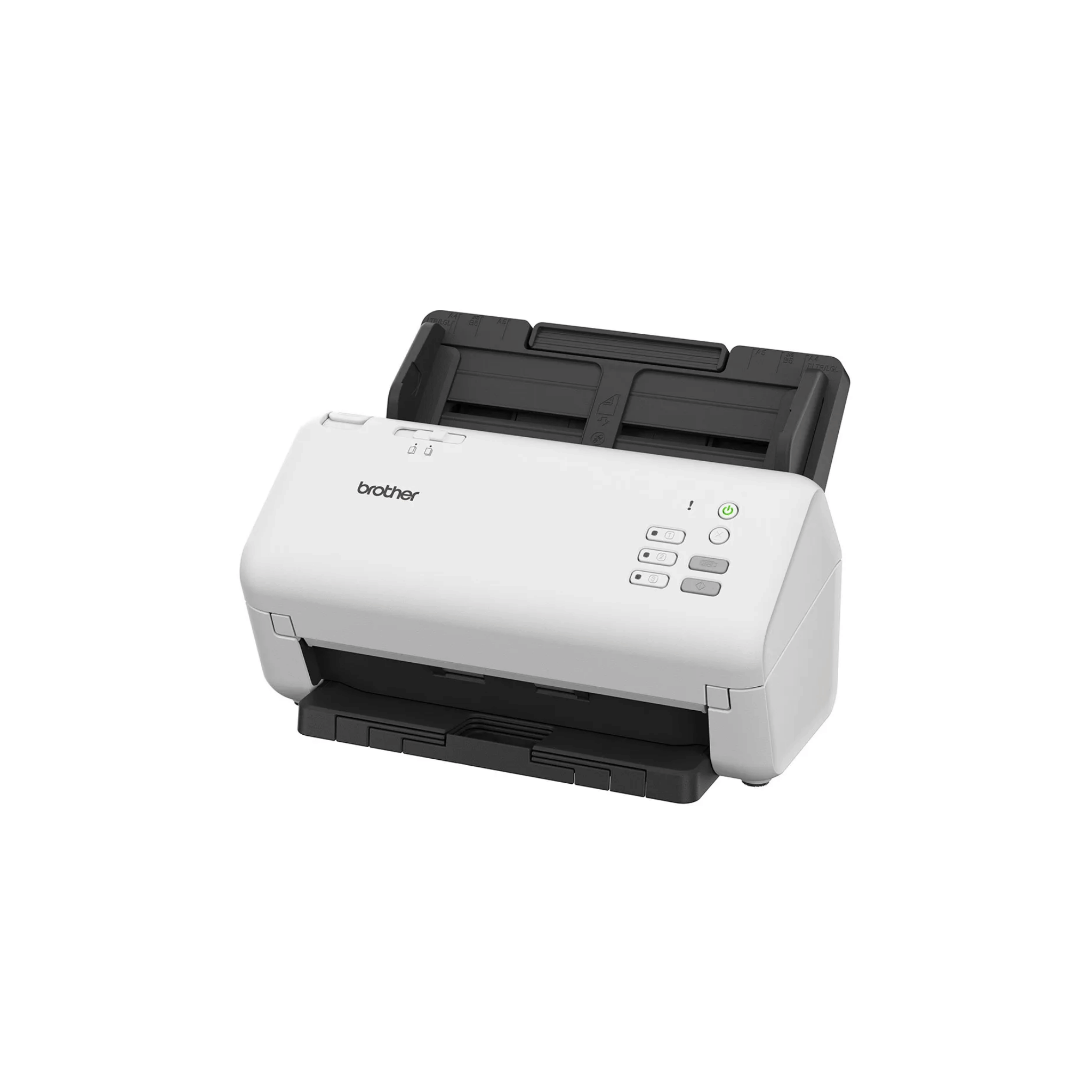

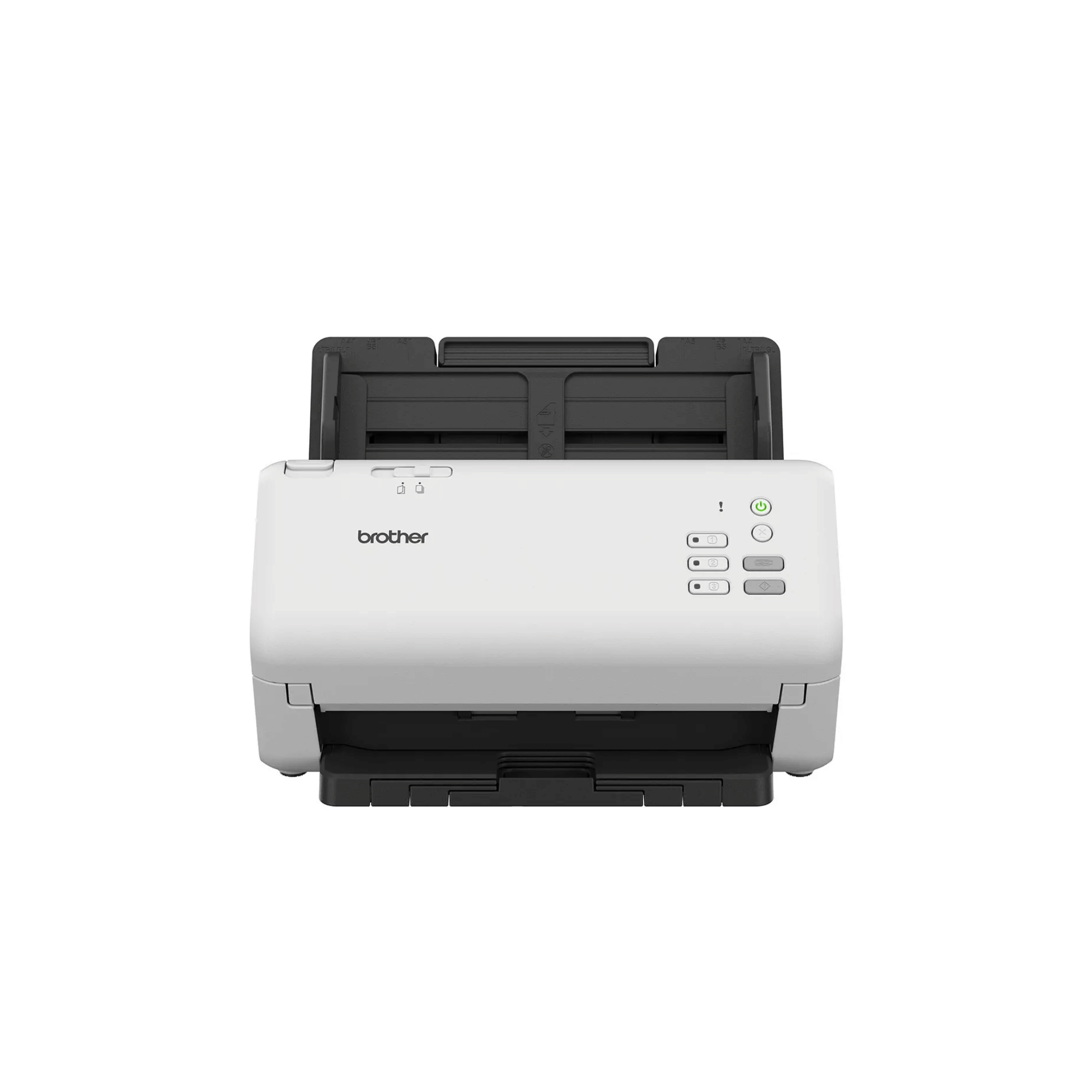

Brother ADS-4300N Wired Network Desktop Document Scanner
- 2-sided scan up to 80 images per minute
- 80 sheet Automatic Document Feeder (ADF)
- Mobile Connect App
- Driver compatibility with TWAIN (Win, macOS), WIA, ISIS, Linux SAN
- Advanced image processing and batch scan
- Ultrasonic Multifeed Sensor, Separation Switch
High-volume scanning
Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.
Automatically route documents with barcodes
Reduce the labour-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.
Easy Maintenance
Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service centre.
SPECIFICATIONS
General Specifications
|
Memory Capacity
|
Standard
|
ADS-4300N/ADS-4700W: 512 MB ADS-4900W: 1024 MB |
|
Power Source
|
AC: 100 - 240 V, 50/60 Hz
|
|
|
Touchscreen 109.2 mm TFT Colour LCD |
||
|
Power Consumption *2
|
Scanning *3
|
ADS-4300N: Approximately 24 W ADS-4700W: Approximately 26 W ADS-4900W: Approximately 34 W |
|
Ready *4
|
ADS-4300N: Approximately 6.8 W ADS-4700W: Approximately 8.6 W ADS-4900W: Approximately 7.7 W |
|
|
Sleep
|
Approximately 1.7 W |
|
|
Power Down
|
Approximately 0.1 W |
|
|
Dimensions
(Typical outline view)  |
Unit: mm
|
|
|
Weights
|
ADS-4300N: 2.64 kg ADS-4700W: 2.75 kg ADS-4900W: 3.37 kg |
|
|
Temperature
|
Operating
|
5°C to 35°C |
|
Storage
|
-20°C to 60°C |
|
|
Humidity
|
Operating
|
20% to 80% |
|
Storage
|
10% to 90% |
|
|
ADF (Automatic Document Feeder)
|
ADS-4300N/ADS-4700W: Up to 80 sheets ADS-4900W: Up to 100 sheets (Paper: 80 g/㎡ A4/Letter size) |
|
Document Specifications
|
Paper Type
|
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
|
|
|
Document Size
|
Width
|
50.8 mm to 215.9 mm
|
|
Length
|
50.8 mm to 355.6 mm
|
|
Scanner Specifications
|
Colour/Monochrome
|
Yes/Yes |
|
|
TWAIN Compliant
|
Windows
|
Windows 7 (SP1) / Windows 8.1 / Windows 10 Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019 |
|
Mac
|
||
|
WIA Compliant
|
Windows
|
Windows 7 (SP1) / Windows 8.1 / Windows 10 |
|
ISIS Compliant
|
Windows
|
Windows 7 (SP1) / Windows 8.1 / Windows 10 |
|
Colour Depth
|
Input
|
48 bit colour processing |
|
Output
|
24 bit colour processing |
|
|
Resolution
|
Interpolated
|
Up to 1200 x 1200 dpi |
|
Optical
|
Up to 600 x 600 dpi |
|
|
Scanning Width
|
Up to 215.9 mm |
|
|
Greyscale
|
256 levels |
|
|
Max. Speed
|
For detailed specifications, visit www.brother.com. |
|
Direct Scan Feature (Scan to USB) Specifications
|
Compatible Media
|
USB flash drive *1 |
|
Interface
|
Interface USB 2.0 Hi Speed |
USB Mass Storage standard up to 128 GB
Supported formats: FAT12/FAT16/FAT32/exFAT
Interface Specifications
|
USB
|
USB 3.0 *1 Use a USB 3.0 cable (Standard A/Standard B) or USB 2.0 interface cable (Standard A/Standard B) that is no more than 2.0 metres long. |
|
LAN
|
Use an Ethernet UTP cable category 5 or later. |
|
Wireless LAN
(ADS-4700W/ADS-4900W) |
|
Your machine has a USB 3.0 interface. The machine can also be connected to a computer that has a USB 1.0/1.1/2.0 interface.
Third-party USB ports are not supported.
Network Specifications (ADS-4300N/ADS-4700W/ADS-4900W)
|
LAN
|
You can connect your machine to a network for Network Scanning. Also included is Brother BRAdmin Light Network Management software. |
|
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) |
|
|
Setup Support Utility
|
WPS (ADS-4700W/ADS-4900W) WLAN Assistant (ADS-4700W/ADS-4900W) |
Supported Protocols and Security Features (ADS-4300N/ADS-4700W/ADS-4900W)
|
Ethernet
|
10BASE-T, 100BASE-TX |
|
Protocol (IPv4)
|
|
|
Protocol (IPv6)
|
RA, DNS Resolver, mDNS, LLMNR responder, HTTP/HTTPS server, ICMPv6, SNTP Client, Web Services (Scan) |
|
Network Security (Wired)
|
SMTP-AUTH, SSL/TLS (HTTPS, SMTP), TLS (SMTP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) |
|
Network Security (Wireless)
(ADS-4700W/ADS-4900W) |
SSL/TLS(HTTPS) |
|
Network Security (Email)
|
SMTP-AUTH, SSL/TLS (SMTP) |
|
Wireless Certification
(ADS-4700W/ADS-4900W) |
WPA3™ - Enterprise, WPA3™ - Personal, Wi-Fi Protected Setup™, Wi-Fi Direct |
